ELASTIC NETTING
AUTOMATION
BONE PROTECTION
Pressing Automation
PRESSING AUTOMATION RANGE
DS1200P8XP
P8 DOUBLE PRESS
DS1200P7XP800
P7 XL DOUBLE PRESS
NL6430ST
NET LOADER
DSHOIST
DOLAV TIPPER
PRESSING AUTOMATION IN DETAIL

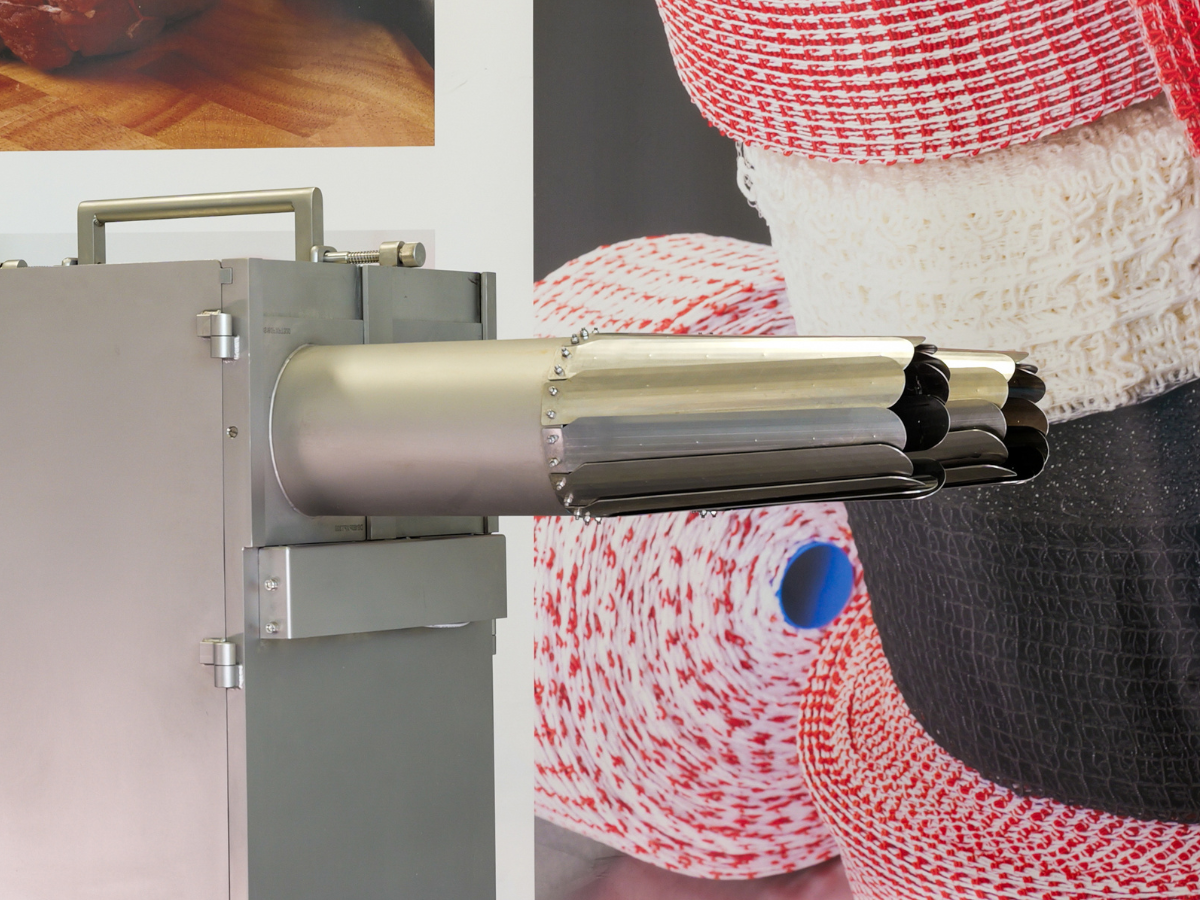

P8 DOUBLE PRESS
DS1200P8XPEfficiency, Precision, Performance
Double the Throughput. Half the Labour.- Durable Spring Steel Fingers - Engineered for long life with easy bolt-on replacement. Rounded ends prevent casing damage, while precision dimples hold casings securely during stuffing.
- Ergonomic Design - Built with operator comfort in mind. Controls are intuitively placed, loading zones are accessible, and the design minimises physical strain during long production runs.
- Hygienic Underside Design - All electrical components are safely positioned above floor level, keeping the underside clear for full washdown access. This open, elevated design reduces contamination risk and supports rigorous hygiene compliance in food production environments.
- Liquid Run-Off Management - The meat press features an integrated run-off channel, designed to capture and direct excess liquid away from the pressing area. This promotes a cleaner working environment, reduces product slippage, and supports hygiene compliance in high-volume operations.
- Intuitive HMI Interface - Simple touch-screen operation with clear prompts and diagnostics. Streamlines training, reduces user error, and enables quick setup and configuration changes.
- Enclosed Mechanical Design - Key components are protected in a sealed cupboard, shielding them from debris, moisture, and cleaning agents. This enhances reliability, extends lifespan, and maintains a clean, efficient workspace.

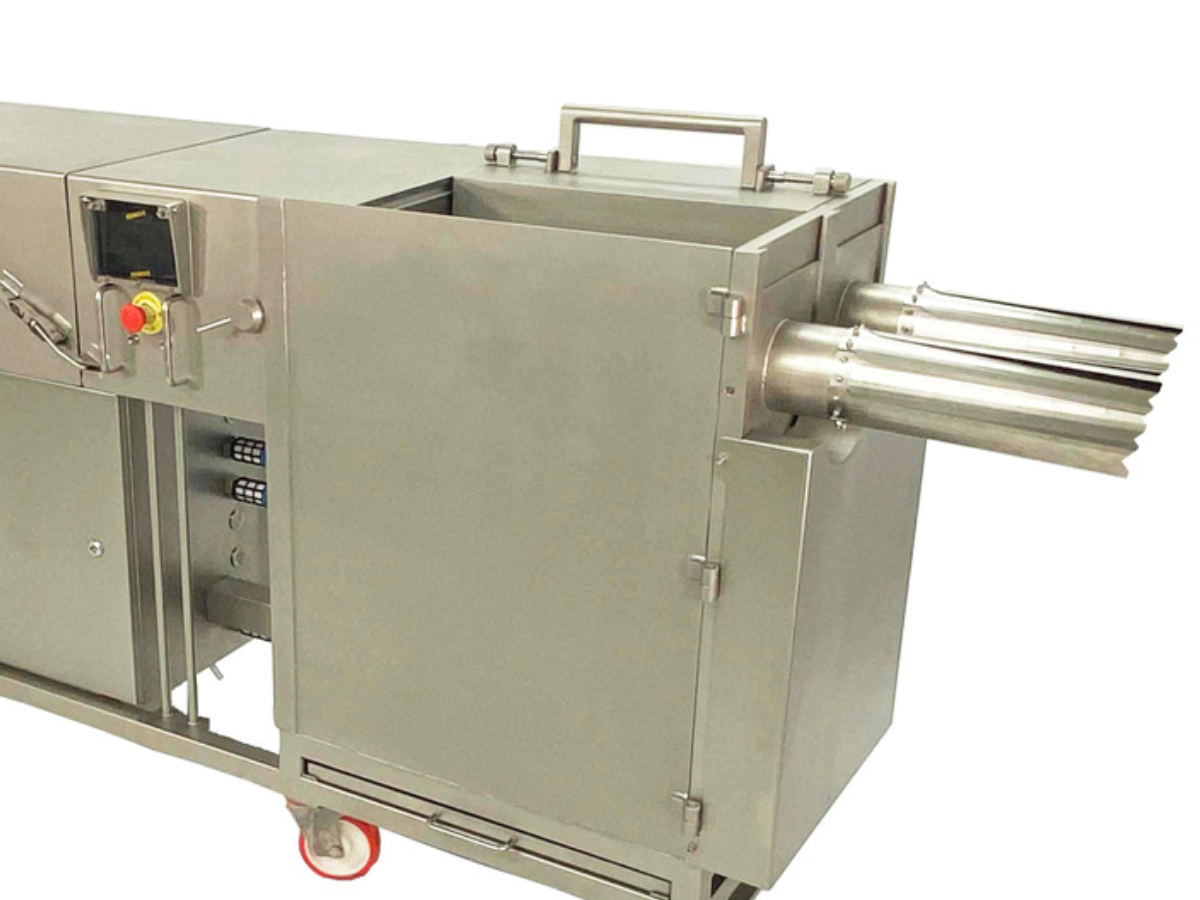

P7 XL DOUBLE PRESS
DS1200P7XP800DS1200P7XP800 HIGH SPEED DOUBLE MEAT PRESS
OUTPUT: UP TO 1000 UNITS PER HOUR - 2200 METERS PER DAY
About The Double Meat Press
This model has an extra-long chamber at 800mm and is for tubes that are 300mm long, and between 70mm and 200mm in diameter.These Double Meat Press machines are also known as ham presses, meat press, dual press or a euro press. Frequently used for ham making machinery, it first presses the meat, before stuffing it into casings or netting.
We design our own meat pressing machinery, which are focused on meat casing machinery and ham making machinery. The 'Scotnet Meat Press' is one of the market leaders in for double meat press machines.

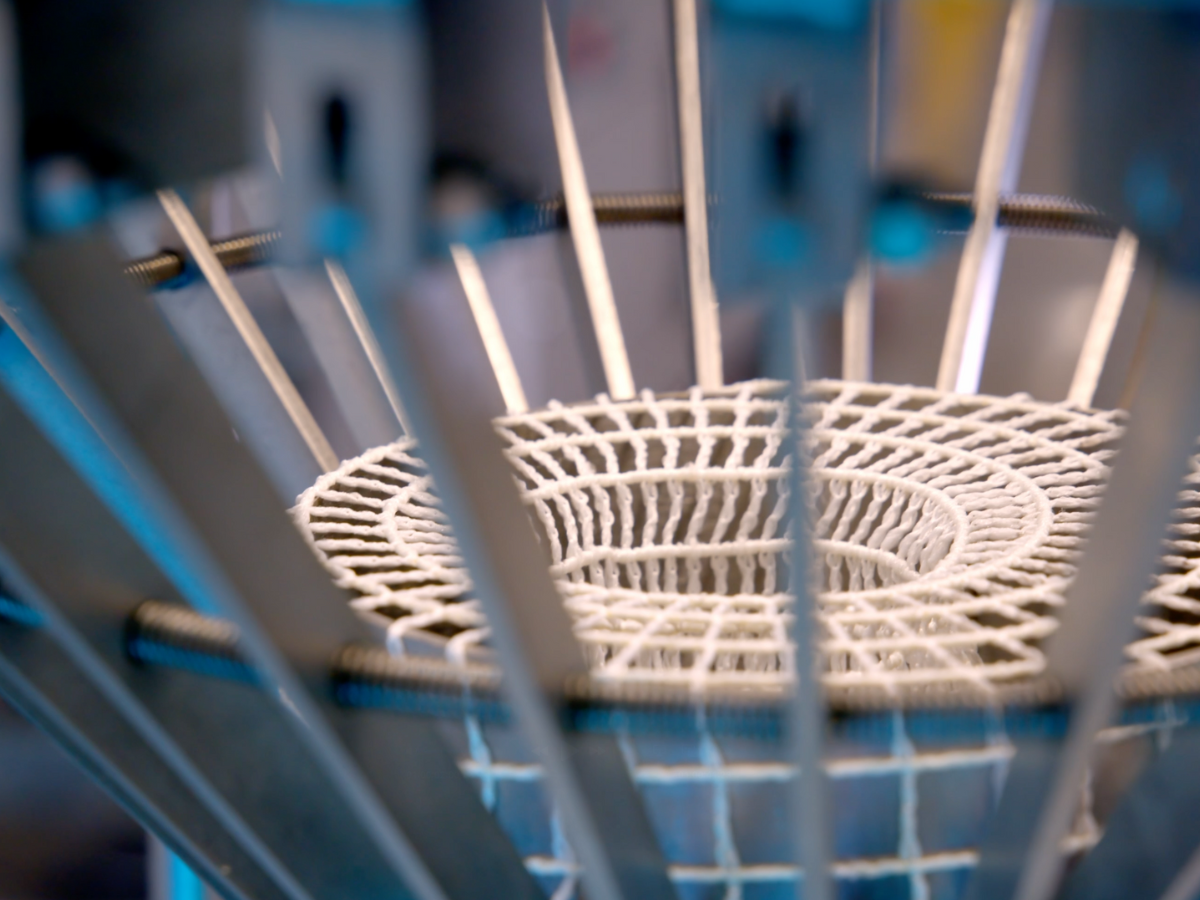

NET LOADER
NL6430STEffortless Loading For All Nets and Casings
Net Loading Simplified- Netting Rolls - The Scotnet and Casings Auto Loader accommodates standard netting rolls, offering fast, reliable application for high-throughput production. Quick-load functionality keeps changeovers minimal and operations running smoothly.
- Multi-Diameter Head - The multi-diameter head adapts to a wide range of tube sizes without adjustment. Perfect for agile, multi-SKU production lines.
- Super Bobbins - Compatible with super bobbins for extended run times and reduced handling. This format minimises downtime and maximises output between reloads.
- Quick Change Head - The quick-change head system enables engineers to change the head in minutes. Reducing maintenance and downtime to a minimum.

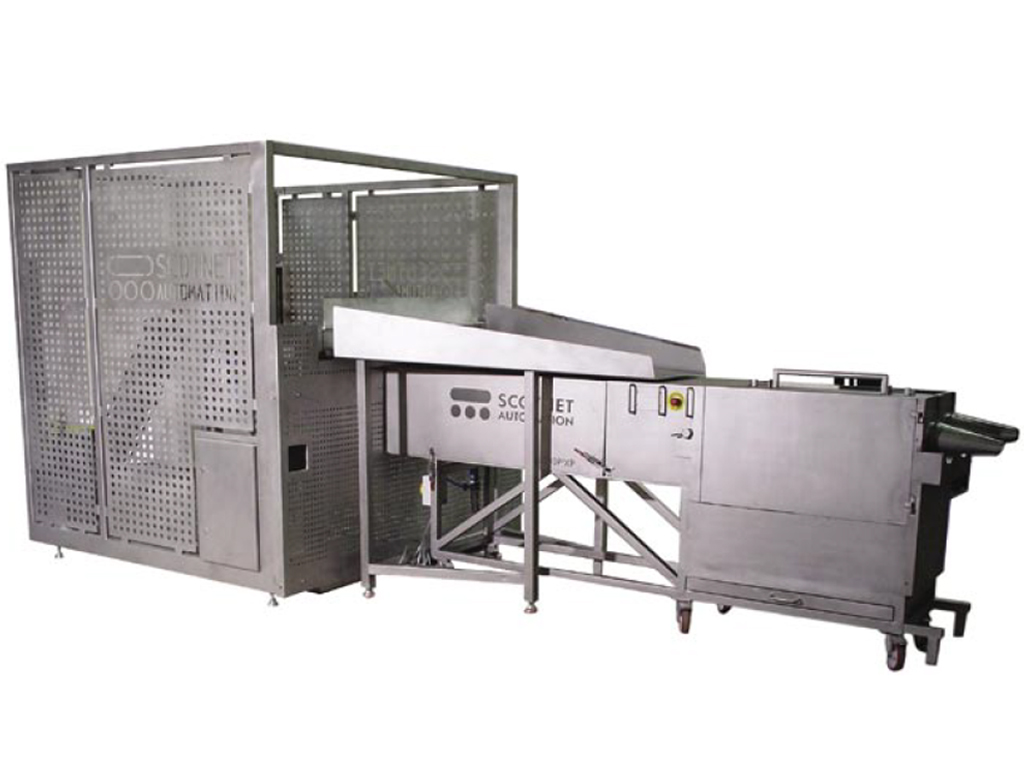

DOLAV TIPPER
DSHOISTEffortlessely Tip Dolav Bins - No Strain or Stress
About the SCOTNET Dolav Bin Tipper
The Scotnet Dolav Bin Tipper has been specifically developed to tip the 1000mm x 1200mm Dolav style plastic bins from floor level onto one of our hoppers for feeding directly into our DS1200 Double Stuffers and DS1200PXP Double Presses.
Our tipper is fully guarded, enabling the stuffer operator to control the tip, without movin from his position.
- Pneumatic Tipping - eliminating any potential contamination from a cylinder leak.
- Reduce Fatigue - Eliminates bending and lifting, the product is effortlessely delivered exactly to the operator ready for loading into the chamber of the stuffer or press.
- Light Curtain Guarding -No gates or moving guards, simply load the bin into the machine, and the light curtain provides total security, enabling the tipping controls to be postioned at the stuffing operator.
- Electronic Controls - Simple to control, with Up/Down buttons, and hold at any point during the lift.
- Easy To Clean - Fully stainless steel design with quick-clean access built in, no tools or engineers required to prepare the machine for cleaning.

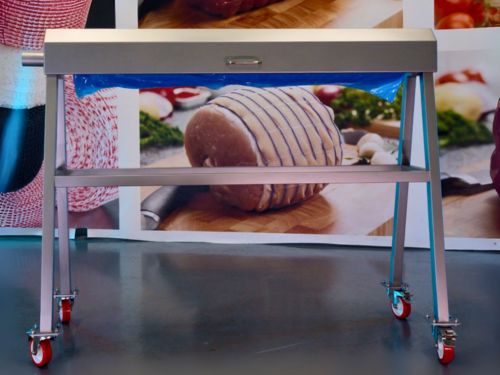

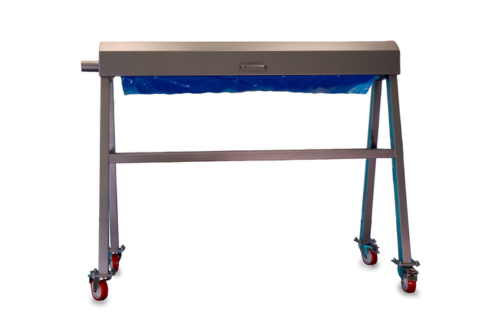

DOLAV DISPENSER
DLDISPENSERThe Dolav Liner Dispenser is designed to keep your liners clean, protected, and ready for use in the most demanding food production environments. Built in stainless steel and fully washable, it's tough enough for harsh washdowns while supporting BRCGS Issue 9 compliance.
Why It's Essential
- Hygiene First - An enclosed hinged hood shields liners from blood splashes, condensation, and dust, reducing contamination risk in high-care areas.
- Audit-Ready - Rolls are kept securely off the floor, removing a common non-conformance and providing clear evidence of Good Manufacturing Practice.
- Efficient Operation - A quick-change roll system reduces downtime, while braked castors make it mobile for cleaning yet secure during production.
- Food Safety Culture - Demonstrates visible commitment to hygiene standards, something auditors and customers value under BRCGS Issue 9.
The Benefits in Practice
Instead of liners stacked on the floor or left exposed to contamination, the Dolav Liner Dispenser keeps everything enclosed, accessible, and easy to clean. The result? A more hygienic process, smoother audits, less downtime, and reduced waste from damaged liners.
In One Line
The Dolav Liner Dispenser is a low-cost, high-impact solution that keeps your operation hygienic, efficient, and compliant - giving technical managers one less audit headache.
PRESSING AUTOMATION STORIES
A detailed look at the Autoloader - Join Gordon Wicklow as he introduces the SCOTNET Auto Net Loader – a breakthrough in automation designed to speed up production and remove the strain of repetitive manual tube loading. This innovative machine works with 700mm Scotnet Tubes for longer runs and fewer reloads, automatically loading up to 100 tubes per cycle with consistent speed and safety. Simple to operate, it allows operators to focus on higher-value tasks while reducing fatigue and the risk of injury. Built for high-volume production environments, it is fully enclosed, IP65+ rated for wet conditions, and engineered with braked castors for mobility, single-phase power and compressed air operation. Certified with CE marking and equipped with emergency stop features, it offers a smart, hygienic, and reliable solution. By embracing the SCOTNET Auto Net Loader, factories can streamline operations, cut labour demands, and maximise efficiency – proving that smarter processing truly starts here.
Boost efficiency and meet the highest standards with the Dolav Liner Dispenser! Designed to keep liners hygienically off the floor, it supports compliance with BRCGS requirements while making liner handling faster, cleaner, and easier.
Watch how this clever solution transforms your workflow into a safer, smarter, and more efficient process.
The P8XP meat press advert. Video of the High Speed Double Press - The machine is designed to deliver efficiency, precision, and performance by doubling throughput while halving labour. It features durable spring steel fingers with easy replacements, an ergonomic layout to reduce operator strain, and a hygienic elevated design that allows full washdown access and minimises contamination risk. An integrated liquid run-off channel improves cleanliness and safety, while a touch-screen HMI interface streamlines operation, training, and diagnostics. Key components are enclosed to protect against debris, moisture, and cleaning agents, ensuring reliability and longevity. Optional features include automatic water injection, selectable stroke length, and automatic piston hold for greater control. Built from stainless steel with IP-rated components, the machine matches the throughput of the DS1200 at over 1,000 units per hour, operates on single-phase 230V power with 6 BAR pneumatics, and weighs around 800kg.
A detailed look round the P8XP meat press. The machine is designed to deliver efficiency, precision, and performance by doubling throughput while halving labour. It features durable spring steel fingers with easy replacements, an ergonomic layout to reduce operator strain, and a hygienic elevated design that allows full washdown access and minimises contamination risk. An integrated liquid run-off channel improves cleanliness and safety, while a touch-screen HMI interface streamlines operation, training, and diagnostics. Key components are enclosed to protect against debris, moisture, and cleaning agents, ensuring reliability and longevity. Optional features include automatic water injection, selectable stroke length, and automatic piston hold for greater control. Built from stainless steel with IP-rated components, the machine matches the throughput of the DS1200 at over 1,000 units per hour, operates on single-phase 230V power with 6 BAR pneumatics, and weighs around 800kg.
The Scotnet Dolav Tipper has been purpose-built to handle 1000mm x 1200mm Dolav plastic bins, tipping them directly into hoppers for seamless feeding into the DS1200 Double Stuffer and DS1200PXP Double Press. With full guarding and rear light curtain protection, the operator can control tipping from their workstation, improving efficiency, reducing labour, and maintaining productivity. Electrically controlled with pneumatic lifting to avoid contamination risks, the system is made entirely from stainless steel and is designed to be easy to operate, maintain, and clean, making it a reliable and hygienic solution for high-volume processing.
Dolav Bin Tipper Side Tip option
