TGM350 AUTOMATIC STRING MACHINE 1PH
Product # TGM350
STRINGERS: Meat presentation better and much quicker than done by hand.
About The Stringer
This tunnel tying machine does away with the tiresome hand binding with meat twine. Whether meat, fish or poultry, with or without filling. The t.g.m.350 2003 guarantees optimal binding results and an attractive appearance of your product even for irregular cuts of meat.The tunnel concept ensures a continuous flow of material. Even long roasts do not need to be turned round in order to bind them completely. Due to the knotting after each loop, a simple portioning of the roasts is possible without the twine fraying. The T.G.M.350 automatic even does the job automatically.
The TGM350 meat tying machine is used to bind meat joints with tying string.
After a short examination of the TGM 350 meat stringing machine, you will realise that this meat tying machine is built to do the job. Several years of industry development coupled together with high quality German engineering makes the TGM 350 tying machine probably the most reliable meat stringing machine on the market.

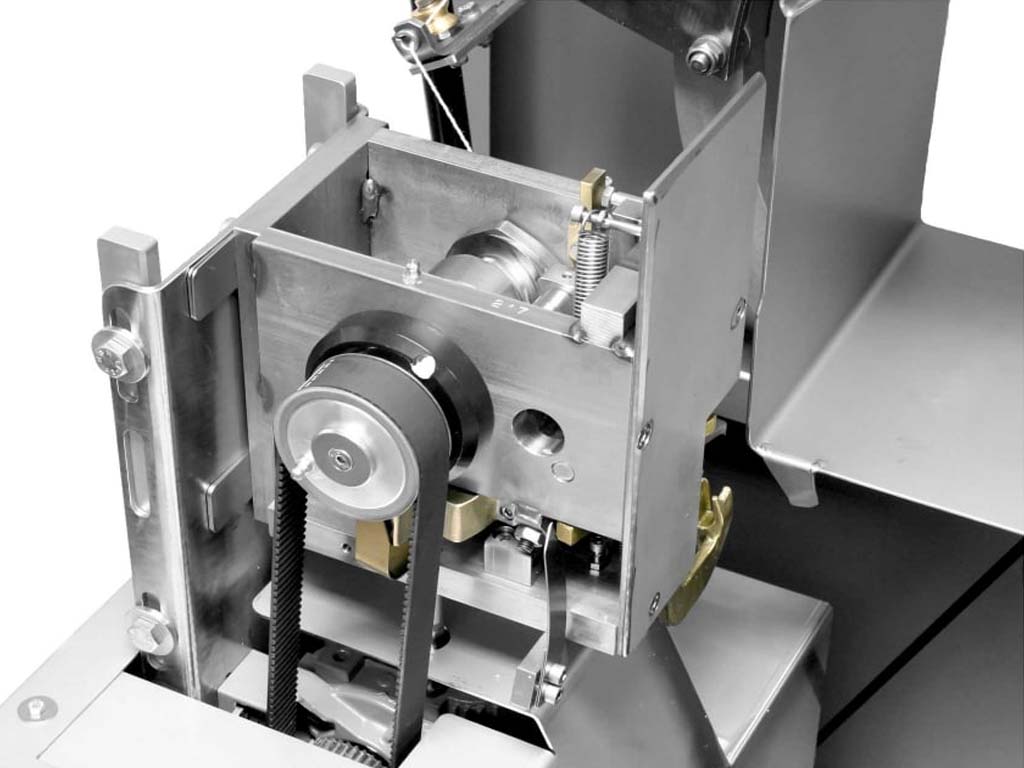

There are many features that make the TGM 350 meat stringer special and one of these is the robust stainless steel knotting head being positioned to the left of the tunnel. This innovation helps prevent the knotting head being contaminated with moisture or product & string waste. By keeping the knotting head clean and lubricated you can expect fantastic reliability and the avoidance of premature part failure.
The TGM350 meat tying machine features a heavy gauge stainless steel construction, low maintenance layout and single - double stringing with twine or elastic making the TGM 350 a meat stringing machine you can't afford to be with out.
PRODUCT DETAILS:

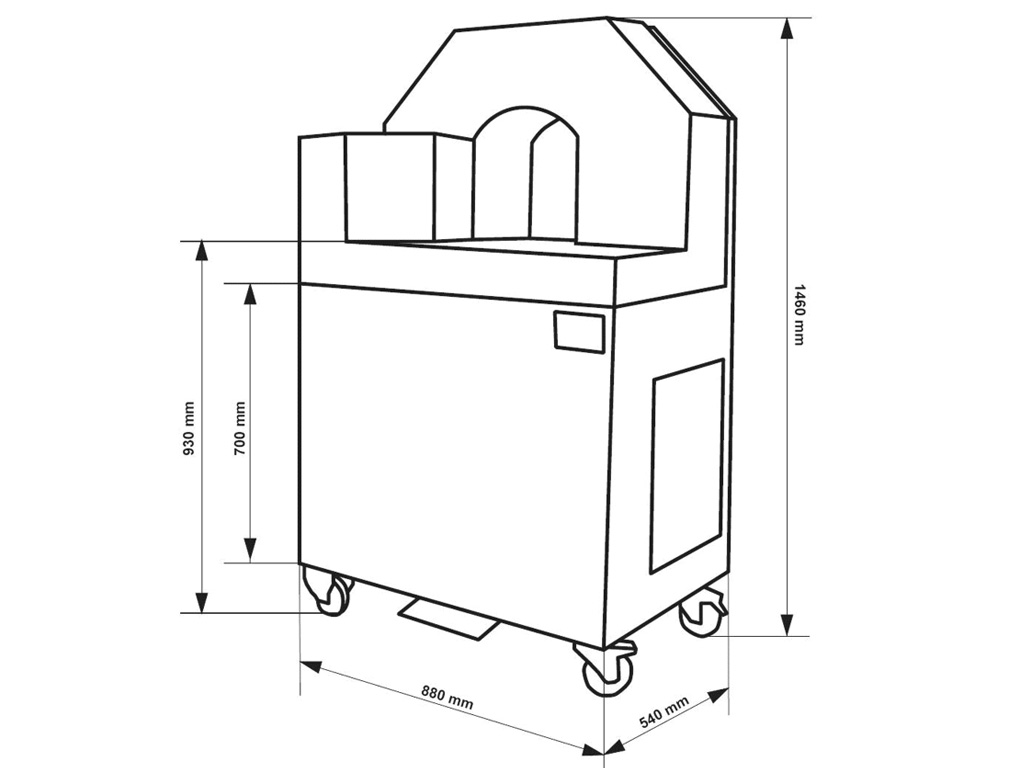

External Dimensions (WxDxH) see diagramTunnel Diameter 320x300mm
Speed (single binding) upto 60 knots/min
Speed (double binding) upto 50 knots/min
Power requirements: 50/60 Hz, 230V 24V-PLC
Weight: circa 120 kg
The TGM350 stringing machines are made for a purpose - high speed stringing and tying of meat in a cost effective and fast way.
The tying of meat by hand can be a labour intensive job, the TGM350 stringing machine removes the hard work and creates meat that has been tied with the same look as if it had been done by hand. Built with heavy gauge stainless steel, the TGM350 is built to last and with many newly improved modifications to the knotting head the machine is capable of lasting a lifetime.
Features:
- low maintenance simple layout of components make maintenance easy- 24Vplc control circuit with auto matic reverse cut-off
- clutch less braking motor
- Toggle switch for single and double binding mounted on 4 casters for mobility
- can be used for the widest variety of dimension and types of meat
- Stainless steel construction
- Water proof encapsulated electric components
- can be used in wet areas
Downloadable Media
| AST80 Brochure |  |
| AST80 Diagram | |
Video Media
Want to reduce labour costs ... meet the AST ... the fastest, most efficient auto string tying machine ever! Video - The AST80 Automatic String Tier is the fastest and most advanced string-tying machine available, delivering up to 85 knots per minute with 30mm increments while reducing labour costs and improving productivity. Built with corrosion-resistant stainless steel, it is compatible with all meat types, including salted and brined products, and works seamlessly with both elastic and polycotton twine without adjustments. Its wider tunnel accommodates larger products than standard competitors, while its hygienic design, ergonomic features, and reduced maintenance requirements ensure efficiency and operator comfort. Equipped with a full diagnostic HMI display, remote monitoring capability, and IP65-rated safety systems, the 1100kg AST80 combines speed, durability, and advanced technology for maximum performance.
A detailed look round the AST80 auto string machine. The AST80 Automatic String Tier is the fastest and most advanced string-tying machine available, delivering up to 85 knots per minute with 30mm increments while reducing labour costs and improving productivity. Built with corrosion-resistant stainless steel, it is compatible with all meat types, including salted and brined products, and works seamlessly with both elastic and polycotton twine without adjustments. Its wider tunnel accommodates larger products than standard competitors, while its hygienic design, ergonomic features, and reduced maintenance requirements ensure efficiency and operator comfort. Equipped with a full diagnostic HMI display, remote monitoring capability, and IP65-rated safety systems, the 1100kg AST80 combines speed, durability, and advanced technology for maximum performance.
